Description

DESCRIPTION

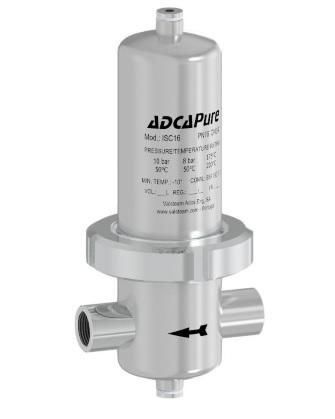

The ISC16 high efficiency filters are used to remove
contaminated particles from gases such as steam and compressed air.
The optimized construction of these units offers low
differential pressure at high flow rates.

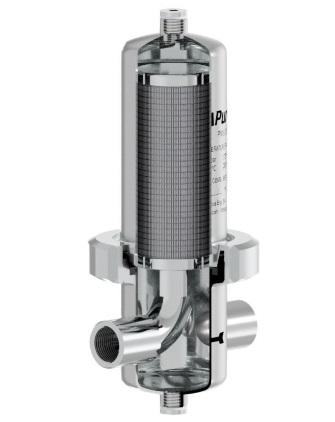

All sizes are build in two halves. Up to DN 3” / DN80 they are joined by a food industry fitting according to DIN 11851 and the larger sizes DN100 to DN200 by flat flanges fixed with bolts and nuts.
The filter elements (replaceable) are made of sintered austenitic stainless steel.

MAIN FEATURES
Several retention rates available
Good durability against aggressive gases
Porosity level is more than 50% ensuring high particle and
dirt load capacity as well as good flow rate at a low
differential pressure.
Regeneration by ultrasonic bath.

STANDARD SURFACE FINISH
Internal parts: ≤ 0,8 microns Ra
External : Satin bead blast finish – 1,6 microns Ra
Mechanical polished as option


OPTIONS: Different kind of connections and dimensions

USE: Steam, compressed air and other gases
(Group 2).

AVAILABLE MODELS: ISC16 – ISC16I
ISC16 – 1.4301 ( AISI 304 )
ISC16I – 1.4404 ( AISI 316L )

RETENTION RATES: 1, 5 and 25 micron


SIZES:
DN1/4” to DN 3” threaded
DN10 to DN 80 flanged
DN100 to DN 200 flanged on request


PIPE CONNECTIONS:
Threaded BSP or NPT
Flanged EN PN16 or ANSI class 150lbs
Welded ends and other connections on request.

INSTALLATION:
Horizontal installation always with the drain connection
pointing downwards. See IMI, installation and
maintenance instructions
